PRODUCTS > 103R Ball Valve: 1-Piece Reduced Port

Product Description

Pressure & Temperature Chart

Schematic Diagram

Materials and Measurements

Click here for a full cut sheet
(PDF format)


Product Description

Features and Benefits:

  • Economical 1-Piece Design
    Compact unibody design delivers outstanding on/off service in a cost effective package

  • High Pressure Construction
    Body and seals designed to perform over a wide range of pressures and temperatures

  • Corrosion Resistant Trim
    Stem and ball are made of corrosion resistant stainless steel for trouble free service and long life

  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal during operation

  • Positive Handle Stop
    Valve uses body as a positive handle stop to insure consistent 90 rotation



Operating / Test Conditions:

  • Temperature Range (RTFE): -20 to 450 F

  • Maximum Working Pressure (RTFE):
    2000 PSI CWP (1/4"-1")
    1500 PSI CWP (1 1/4"-2")

  • All valves are shell and seat tested to ANSI/ASME B16.34 and API 598

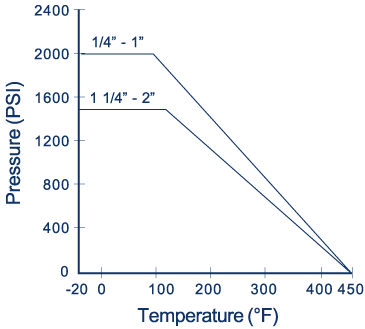

Pressure & Temperature Chart

(RTFE Seats / Seals)

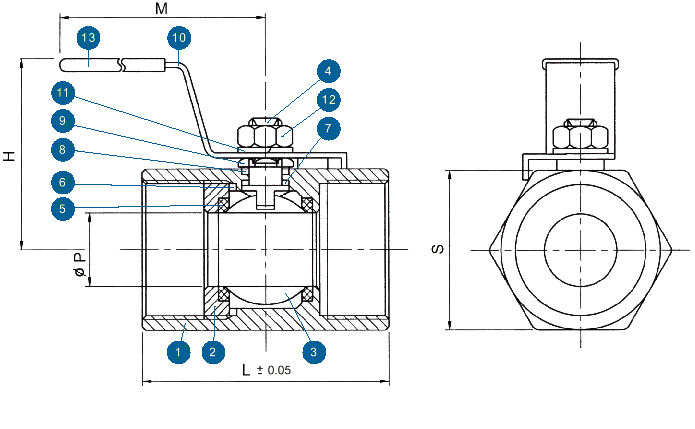

Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Material
Qty
1
Body
S25C
1
2
Insert
S25C
1
3
Ball
304SS
1
4
Stem
304SS
1
5
Seat
RTFE (15% G.F.)
2
6
Body Seal
PTFE
1
7
Thrust Washer
PTFE
1
8
Stem Packing Set
PTFE
1
9
Packing Gland
304SS
1
10
Handle
304SS
1
11
Lock Washer
304SS
1
12
Handle Nut
304SS
1
13
Handle Cover
Vinyl
1

DIMENSIONS (Inches)

Size
L
P
M
H
S Weight(lbs)
1/4 1.71 0.20 2.40 1.14 0.67 0.22
3/8 1.89 0.28 3.15 1.38 0.83 0.31
1/2 2.20 0.36 4.09 2.60 0.99 0.62
3/4 2.56 0.49 4.21 2.72 1.22 0.92
1 3.05 0.59 4.65 2.95 1.50 1.41
1 1/4 3.62 0.79 5.75 3.07 1.90 3.04
1 1/2 3.78 0.98 5.83 3.35 2.09 3.08
2 4.49 1.26 5.91 3.86 2.67 5.90

Due to continuous product development, information may change without notice.
