PRODUCTS > 904 Series Y-Strainer: 1/2" - 2"

Product Description

Schematic Diagram

Materials and Measurements

Click here for a full Cut Sheet
(PDF format)


Product Description

Standard Features:

  • Investment Casting

  • Y-Type

  • 316 SS 20 Mesh Screen

  • Screwed-In Cap

  • Thread Connection: ANSI B2.1, BS21, DIN

  • Maximum Working Pressure: 600 PSI

  • Temp. Range: -40 to 450°F

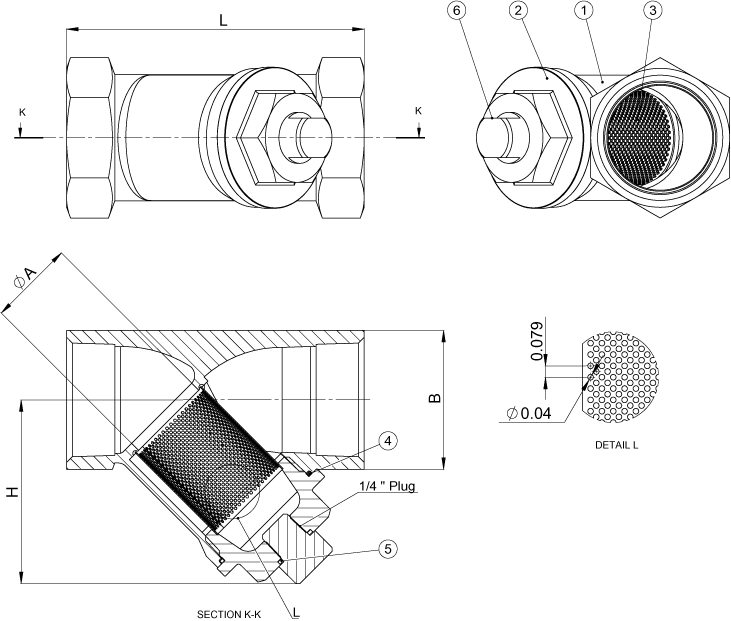

Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Standard Materials Qty
1
Body CF8M 1
2
End Cap CF8M 1
3
Screen 316 SS 1
4
Gasket PTFE 1
5
Gasket PTFE 1
6
Plug 316 SS 1

DIMENSIONS (Inches)

Size A B H L Wt. (lbs)
1/2" 0.59 1.02 1.80 2.56 0.46
3/4" 0.79 1.30 2.00 3.15 0.82
1" 0.98 1.61 2.17 3.54 1.20
1 1/4" 1.15 1.93 2.55 4.13 1.80
1 1/2" 1.38 2.20 2.81 4.72 2.58
2" 1.85 2.72 3.30 5.51 4.36
