PRODUCTS > 905 Series Gate Valve: 1/2" - 2"

Product Description

Schematic Diagram

Materials and Measurements


Product Description

Standard Features:

  • Investment Casting

  • Screwed-In Bonnet

  • Non-Rising Stem

  • Solid Wedge Disc

  • Hand Wheel Operation

  • Thread Connection: ANSI B2.1. BS21, DIN

  • Maximum Working Pressure: 200 PSI

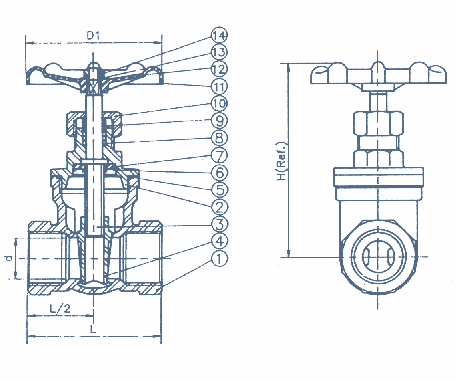

Schematic Diagram


Materials & Measurements

Materials List

Item
Part Name
Standard Materials Qty
1
Body ASTM A-351 GR. CF8M 1
2
Disk ASTM A-351 GR. CF8M 1
3
Stem SS316 1
4
Bonnet ASTM A-351 GR. CF8M 1
5
Gasket Packing TEFLON 1
6
Stop Ring SS304 1
7 Stem Holder SS316 1
8 Stem Packing TEFLON 1 set
9 Gland SS304 1
10 Gland Nut SS316 1
11 Handwheel MICO STEEL 1
12 Name Plate ALUMINUM 1
13 Handwheel Washer SS304 1
14 Handwheel Nut SS304 1

DIMENSIONS (Inches)

Size d H L D1 T
1/2" 0.59 3.78 2.13 2.36 1/2" NPT or PF
3/4" 0.79 4.06 2.28 2.76 3/4" NPT or PF
1" 0.98 4.41 2.56 2.76 1" NPT or PF
1 1/4" 1.26 5.04 2.95 3.15 1 1/4" NPT or PF
1 1/2" 1.57 5.87 3.07 3.54 1 1/2" NPT or PF
2" 1.97 6.50 3.43 3.94 2" NPT or PF

Due to continuous product development, information may change without notice.
