PRODUCTS > ISO 5211 Direct Mount Ball Valves

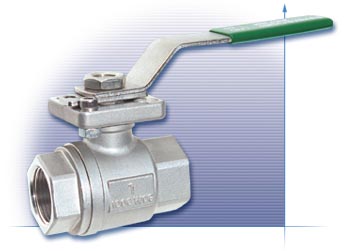

204F
2-Piece Ball Valve: Full Port
316SS
  • Threaded
  • ISO 5211 Direct Mount Pad
  • Locking Device
  • Size:         1/4" to 4"
  • Pressure:   800 to 1000 PSI CWP
  • Temp:       -20 to 425 degrees

    •                 Fahrenheit

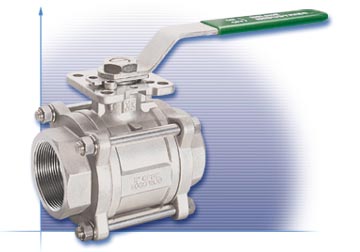

304F
3-Piece Ball Valve: Full Port
316SS / WCB x 316SS
  • Threaded
  • ISO 5211 Direct Mount Pad
  • Locking Device
  • Size:         1/4" to 4"
  • Pressure:   800 to 1000 PSI CWP
  • Temp:       -20 to 425 degrees

    •                 Fahrenheit




334
3-Piece Ball Valve: Standard Port and Full Port
316SS
  • Threaded, Butt / Socket Weld
  • ISO 5211 Direct Mount Pad
  • Locking Device
  • Size:         1/4" to 2 1/2"
  • Pressure:   3000 PSI
  • Temp:       -20 to 550 degrees

    •                 Fahrenheit

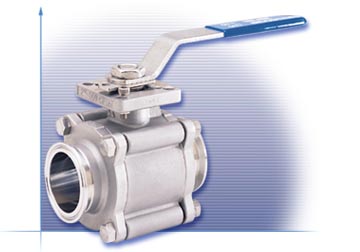

337F
3-Piece Sanitary Ball Valve: Tube Full Port
316L SS
  • Clamp, Tube Butt Weld and

    • Extended Tube Butt Weld
  • ISO 5211 Direct Mount Pad
  • Locking Device
  • Size:          1/4" to 4"
  • Pressure:    600 to 1000 PSI CWP
  • Temp:        -20 to 350 degrees

    •                 Fahrenheit (PTFE)
  • Options:     Tru-Drain CIP System

    •                 Cavity Fill Seats


364
3-Piece Ball Valve: Diverter
 316SS

  • Bottom or Side Porting
  • ISO 5211 Direct Mount Pad
  • Universal Valve Body
  • Size:         1/4" to 2-1/2"
  • Pressure:   4000 PSI CWP (depending on
                    seat)
  • Temp:       -150 to 600 degrees
                    Fahrenheit

367F
3-Piece Sanitary Ball Valve: Diverter
 316SS

  • Bottom or Side Porting
  • ISO 5211 Direct Mount Pad
  • Internal Surfaces Roll Burnished Prior to Final Polish
  • Size:         1/2" to 2"
  • Pressure:   800 to 1000 PSI CWP
  • Temp:       -20 to 420 degrees
                   Fahrenheit (TFM)
  • Options:   Jacketed
                  Cavity Filled

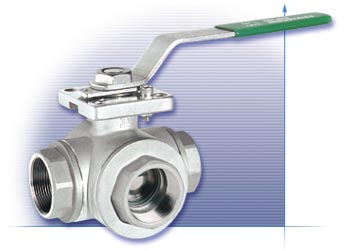

514F
3-Way Ball Valve: Full or Standard Port
316SS
  • Threaded
  • ISO 5211 Direct Mount Pad
  • Locking Device
  • Size:         1/4" to 2"
  • Pressure:   800 to 1000 PSI CWP
  • Temp:        -20 to 425 degrees

    •                  Fahrenheit
